Linear table

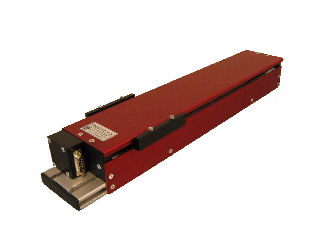

Compact linear motorized unit

This compact multi-positioning linear unit (width 120mm, height 70mm) for positioning tasks in the low force range is based on the linear motor LinMot P01-23Sx80.

This direct drive system, equipped with a linear precision guide, allows high dynamic motions with a high accuracy and a long operational life. Several strokes are available.

The introduction of dirt into the system is limited by the presence of a protection plate on the top of the unit and two side plates.

The linear unit can be controlled by the entire range of LinMot servo-controllers.

For more information, please contact us.
